LITESTAR LDR Pro Series Rental LED Display
Classification:
- Product Description
- Video
-

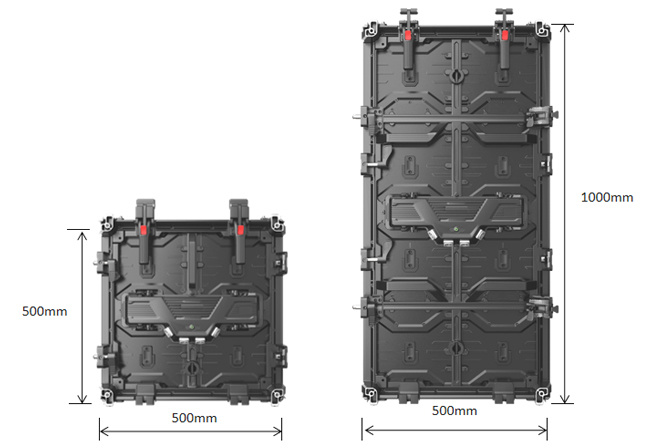

Cabinet Size
· Has 500x500 & 500x1000mm led panels options.
· High precise light weight and slim die casting aluminum panel.

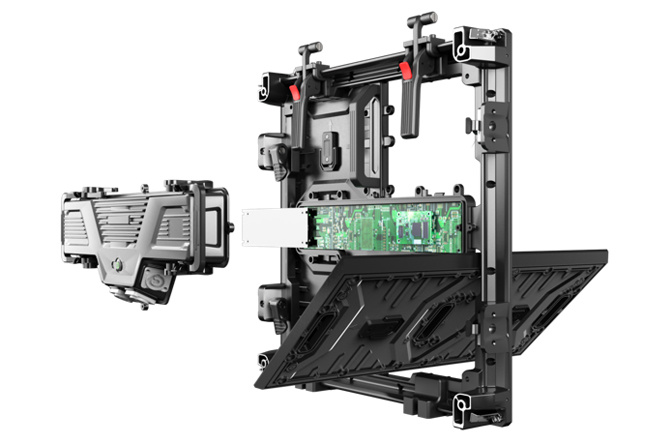

Front & Rear service
· Module support both front and rear service.
· Integrated power box is removable.
· Hub design, easy for installation and maintenance.
· 250*500mm module has no distinction of left & right.

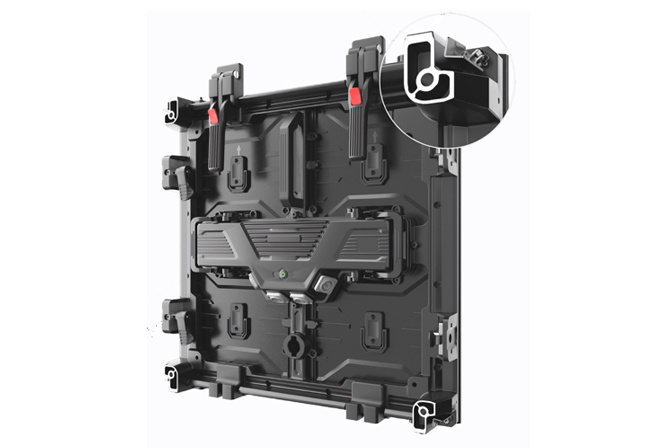

Anti-bump design
Has 4 protection flips at the 4 corners of the led panel to protect led modules.

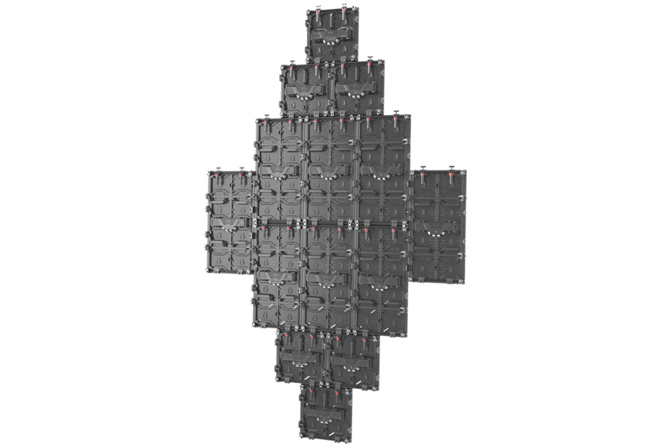

Misaligned splicing
· 500x500 & 500x1000mm panels can be combined freely.
· Support misaligned splicing in both horizontal & vertical.
Buckle lock for fast installation
· Handle integrated with buckle lock function for fast installation.
· One person can handle installation easily.

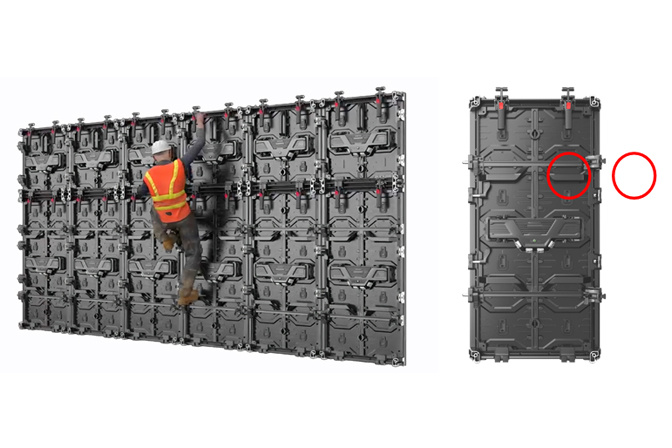

Panel handle for climbing
The panel handles support climbing for easier installation and touble shooting.
Working Temp/Humidity
P1.9
P2.6
P2.9
P3.9
P2.6
P2.9
P3.9
Application
Indoor
Indoor
Indoor
Indoor
Outdoor
Outdoor
Outdoor
LED Type
SMD1515
SMD1515
SMD1515
SMD2020
SMD1415
SMD1415
SMD1921
Physical Density(dots/m2)
262144
147456
112896
65536
147456
112896
65536
Module size
250*500mm
250*250mm
250*250mm
250*250mm
250*250mm
250*250mm
250*250mm
Module resolution(dots)
128*256
96*192
168*336
128*64
96*192
168*336
128*64
Cabinet weight
8/12.5kgs
8/12.5kgs
8/12.5kgs
8/12.5kgs
8/12.5kgs
8/12.5kgs
8/12.5kgs
Ingress protection
IP65
IP65
IP65
IP65
IP41
IP41
IP41
Brightness
4000-5000nits
4000-5000nits
4000-5000nits
4000-5000nits
800-1000nits
800-1000nits
800-1000nits
Scan
1/32
1/24
1/21
1/16
1/24
1/21
1/16
Refresb rate
3840hz
Viewing angle
140°/140°
Minimum viewing distance
1.9m
2.6m
2.9m
3.9m
2.6m
2.9m
3.9m
Grayscale
14-16bit
Max/Ave Power
640/210w
Input Voltage
AC90-264v
Working Temp/Humidity
-30~60℃/10%~85%
Storage Temp/Humidity
-30~60℃/10%~85%
